2018 · Vasiliev — Reducing Humidity Response of Gas Sensors for Medical Applications: Use of Spark Discharge Synthesis of Metal Oxide Nanoparticles
Super-Abstract
This engineering study develops improved tin dioxide (SnO₂) nanoparticle gas sensors that are less sensitive to humidity and can detect hydrogen gas, lactate vapour, and ammonia — biomarkers respectively of gut infections, stomach cancer, and H. pylori. The H₂ here functions as a diagnostic marker detected by the sensor, not as a therapeutic agent. This is a sensor engineering study, not a hydrogen therapy study. (Sensors, 2018.)
Commentary
Vasiliev and colleagues tackle a practical challenge in breath-analysis diagnostics: conventional sol-gel-produced metal oxide gas sensors drift significantly with changing humidity, making exhaled breath measurements unreliable. They address this by synthesising SnO₂ nanoparticles via spark discharge in the gas phase — a dry process that reduces surface hydroxyl groups responsible for humidity sensitivity. The resulting sensor responds to hydrogen gas with a factor-of-8 resistance drop (very fast, ~1 s) while humidity variation causes only ~20% drift. Hydrogen is relevant here because gut bacteria produce H₂ as a fermentation product, and elevated exhaled H₂ is a marker of intestinal bacterial overgrowth and enteric infections. The paper does not involve therapeutic H₂ in any form.
Key quotes
- „The response to 100 ppm of hydrogen is a factor of 8 with very short response time of about 1 s.“ — sensor performance metric — how sensitively the device detects H₂ gas
- „The sensor response was tested in mixtures of air with hydrogen, which is the marker of enteric infections and the marker of early stage fire.“ — H₂ as a diagnostic exhaled-breath biomarker, not a therapy
- „The drop in sensor resistance does not exceed 20% when air humidity increases from 40 to 100%.“ — the key improvement: humidity-robust response for reliable breath analysis
Our assessment
This is a sensor engineering paper with no therapeutic H₂ content. Its connection to hydrogen medicine is indirect: the sensor could support exhaled-H₂ breath tests used in diagnosing gut dysbiosis or small intestinal bacterial overgrowth (SIBO) — conditions sometimes discussed in the context of gut health. However, the paper itself does not study any clinical intervention, patient population, or H₂ treatment. It is a materials science and analytical instrumentation study. Readers seeking evidence for therapeutic applications of H₂ will find nothing applicable here.
Study design
- Type: in-vitro materials science / sensor engineering study · Model: SnO₂ nanoparticles synthesised by spark discharge; bench-top gas mixture testing
- H₂ relevance: H₂ used as a test gas to characterise sensor performance — not as a therapeutic agent
- Result: spark-discharge SnO₂ sensor shows ~8× resistance change to 100 ppm H₂ with ~1 s response time; humidity drift < 20% across 40–100% RH; also detected lactate and ammonia vapours
Abstract
The application of gas sensors in breath analysis is an important trend in the early diagnostics of different diseases including lung cancer, ulcers, and enteric infection. However, traditional methods of synthesis of metal oxide gas-sensing materials for semiconductor sensors based on wet sol-gel processes give relatively high sensitivity of the gas sensor to changing humidity. The sol-gel process leading to the formation of superficial hydroxyl groups on oxide particles is responsible for the strong response of the sensing material to this factor. In our work, we investigated the possibility to synthesize metal oxide materials with reduced sensitivity to water vapors. Dry synthesis of SnO₂ nanoparticles was implemented in gas phase by spark discharge, enabling the reduction of the hydroxyl concentration on the surface and allowing the production of tin dioxide powder with specific surface area of about 40 m²/g after annealing at 610 °C. The drop in sensor resistance does not exceed 20% when air humidity increases from 40 to 100%, whereas the response to 100 ppm of hydrogen is a factor of 8 with very short response time of about 1 s. The sensor response was tested in mixtures of air with hydrogen, which is the marker of enteric infections and the marker of early stage fire, and in a mixture of air with lactate (marker of stomach cancer) and ammonia gas (marker of Helicobacter pylori, responsible for stomach ulcers).
Source & links

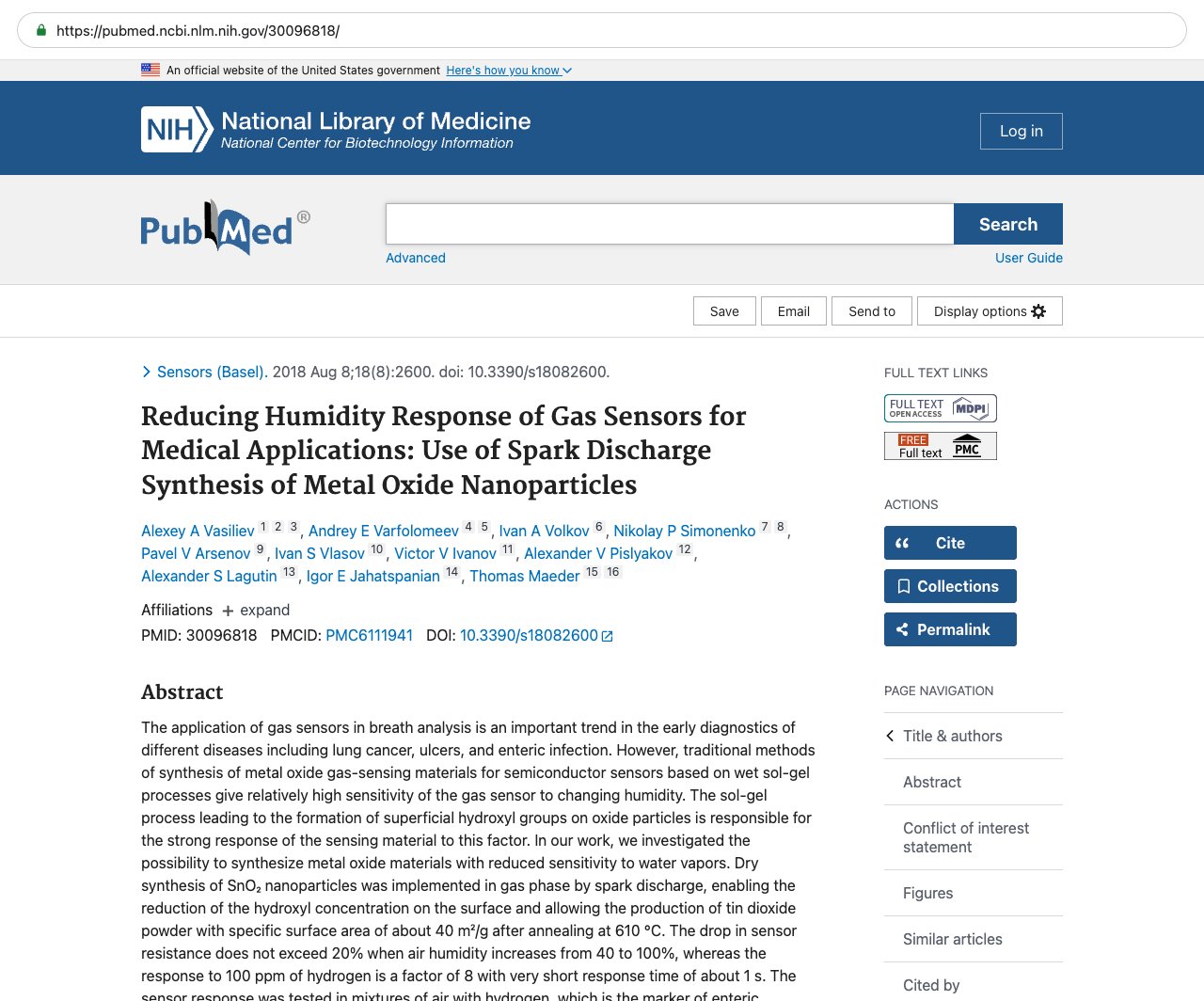

Screenshot of the PubMed page
This page mirrors the published abstract (© the authors / publisher) for reference and citation. The canonical source is the PubMed record linked above. This is not medical advice.
