2022 · Yamamoto et al. — Development of a Model System for Gas Cavity Formation Behavior of Magnesium Alloy Implantation
Super-Abstract
This study developed an in-vitro gelatin model to simulate and measure the hydrogen gas cavities that form in tissue when biodegradable magnesium (Mg) bone screws corrode — a known clinical challenge in orthopaedic surgery. The model accurately reproduced clinical gas cavity volumes and demonstrated that cavity size depends on the corrosion rate of the Mg alloy and its polymer coating thickness. This is a biomaterials engineering study; H₂ here is a by-product of metal corrosion, not a therapeutic agent. (ACS Biomaterials Science and Engineering, 2022.)
Commentary
Biodegradable magnesium-based bone fixation screws are an innovative alternative to permanent metal implants — they dissolve over time and eliminate the need for removal surgery. However, when Mg corrodes in body fluid, it reacts with water and releases hydrogen gas. This H₂ can accumulate in surrounding tissue, forming gas cavities that sometimes delay fracture healing. This study builds a laboratory model using gelled cell culture medium to observe how H₂ gas cavities grow over 28 days using X-ray computed tomography. The model reproduced clinical gas cavity volumes (3–9% of total H₂ generated), making it a useful tool for optimising Mg implant coatings. The H₂ in this study is a biomedical engineering concern — not a therapeutic application.
Key quotes
- „The gas cavity formation is considered to depend on the balance between hydrogen generation by Mg corrosion reacting with water in the body fluid and its diffusion into the surrounding tissue by capillary flow.“ — the physical mechanism of gas cavity formation in tissue around corroding Mg implants
- „The gas cavity volume was only 3.3∼7.5% of the total hydrogen gas volume estimated based on the weight loss of the samples at 28 d, which is in the range of those calculated from the clinical report.“ — validation of the model against clinical observations — most H₂ diffuses away; only a fraction accumulates as a visible cavity
- „This system can be an effective tool to investigate the gas cavity formation behavior and contribute to understand the mechanisms and controlling factors of this phenomenon.“ — the practical conclusion: the model is validated for use in optimising Mg implant design
Our assessment
This is an in-vitro biomaterials engineering study. It has no relevance to therapeutic molecular hydrogen. H₂ here is an unwanted corrosion by-product in orthopaedic implants. The model is technically solid and validated against clinical data, making it useful for the Mg implant research community. Honest note: This study appears in an H₂-medicine context due to keyword overlap — its subject is surgical implant materials science, not health effects of administered H₂.
Study design
- Type: in-vitro biomaterials study · Model: gelatin-embedded Mg alloy screws (AZ31) with polymer (PLLA) coatings of 1.0, 1.6, 2.0 μm; observed by X-ray CT over 28 days · H₂ relevance: H₂ as corrosion by-product of Mg implant degradation — not a therapeutic agent
- Result: gas cavity volume correlated with Mg corrosion rate and coating thickness (1.57, 1.06, 0.38 mm³/mm² for 1.0, 1.6, 2.0 μm coatings); gas cavity = 3.3–7.5% of total H₂ generated (matching clinical reports of 3.2–9.4%)
Abstract
Clinical applications of magnesium (Mg)-based screws have reported gas cavity formation in the surrounding tissue, which sometimes delays the fixation of the bone fracture. The gas cavity formation is considered to depend on the balance between hydrogen generation by Mg corrosion reacting with water in the body fluid and its diffusion into the surrounding tissue by capillary flow. In order to understand the gas cavity formation behavior by Mg-based material implantation, we developed a new in vitro model system to recreate this cavity formation phenomenon: the hydrogen generation by corrosion and its diffusion into the medium. A model tissue is prepared by gelation of the cell culture medium in a sterile condition. The immersion of Mg alloy samples was performed under 5% CO2 atmosphere with periodic observation by X-ray computed tomography, which enabled us to observe gas cavity growth up to 28 d. For demonstrating the usefulness of our model system, Mg alloy samples with different corrosion rates were prepared by a biodegradable polymer coating. AZ31 screws were spin-coated by poly-l-lactide (PLLA) and classified into three groups by their coating thickness as 1.0 ± 0.0, 1.6 ± 0.2, and 2.0 ± 0.1 μm (ave. ± s.d.). Upon their immersion into the model tissue, the gas cavity volumes formed were 1.57 ± 0.23, 1.06 ± 0.22, and 0.38 ± 0.09 mm3/mm2 for 1.0, 1.6, and 2.0 μm coating samples, having the weight loss of 20.2 ± 2.93, 18.5 ± 2.84, and 11.3 ± 3.54 μg/mm2, respectively (ave. ± s.d.). This result clearly indicates the dependence of gas cavity formation on the corrosion rate of the sample. The gas cavity volume was only 3.3∼7.5% of the total hydrogen gas volume estimated based on the weight loss of the samples at 28 d, which is in the range of those calculated from the clinical report (3.2∼9.4% at 4w). This system can be an effective tool to investigate the gas cavity formation behavior and contribute to understand the mechanisms and controlling factors of this phenomenon.
Source & links

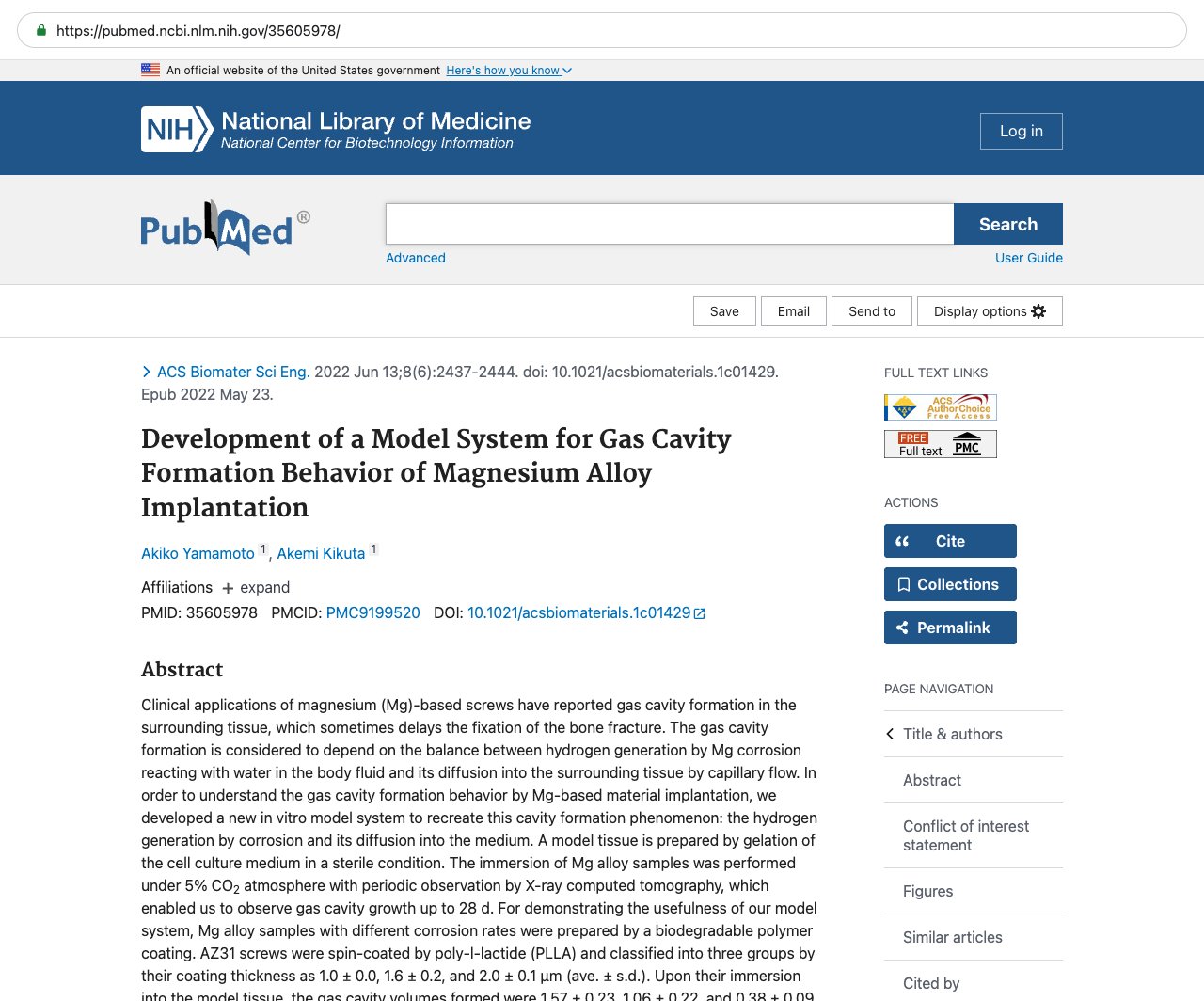

Screenshot of the PubMed page
